USB-CAN/CAN FD AnalyzersExact model

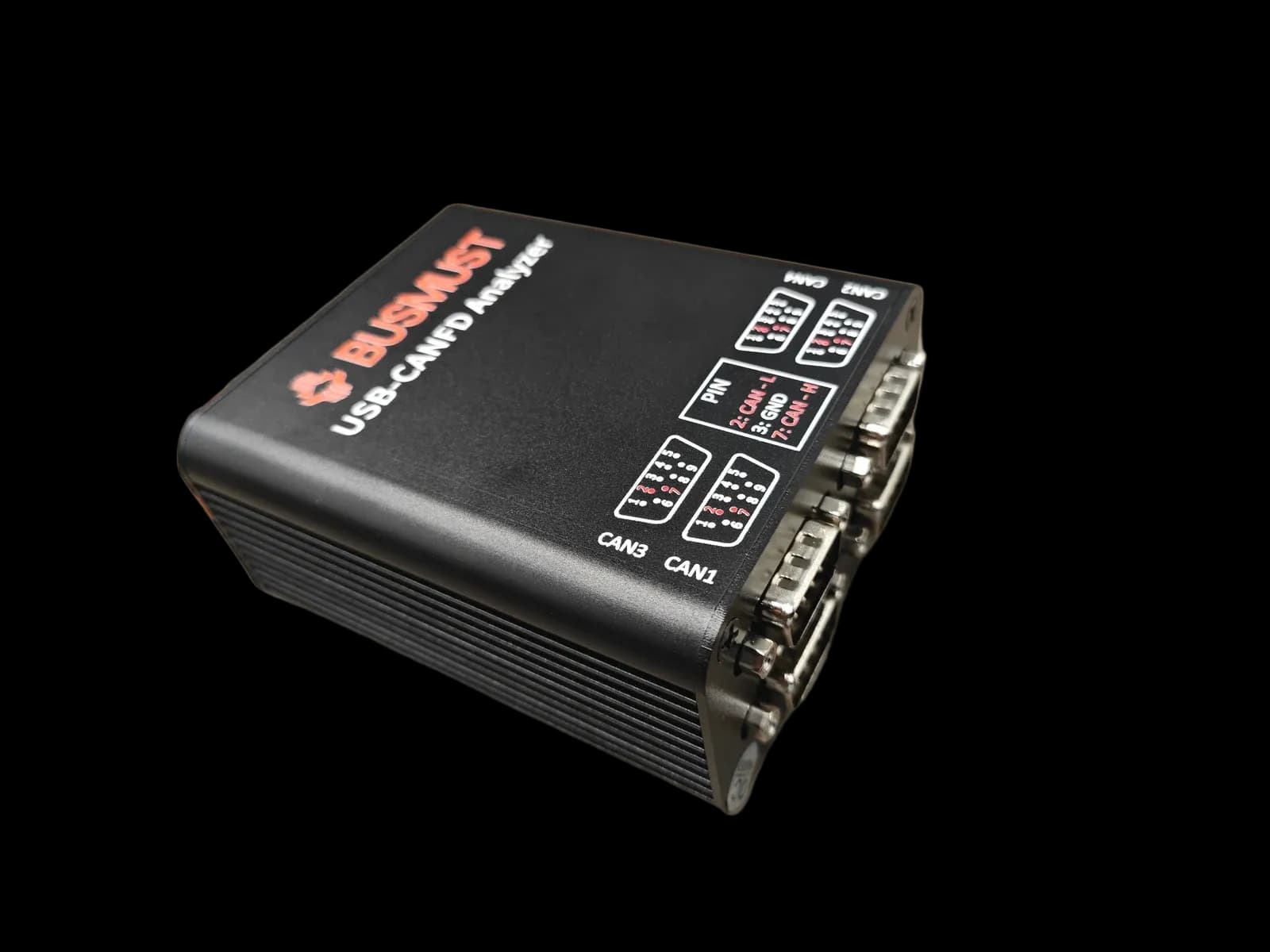

BM-USB-CANFD-X4R
BM-USB-CANFD-X4R is listed in the USB-CAN/CAN FD Analyzers range for robot integration and engineering evaluation. Key specifications: CAN FD channels 4; Protocols CAN 2.0 / CAN FD. Confirm the final configuration, application fit, availability, and delivery terms through a quotation request.
Specifications
- CAN FD channels
- 4
- Protocols
- CAN 2.0 / CAN FD
- Maximum CAN FD data-phase rate
- 8 Mbps
- Receive throughput
- >16000 frames/s
- Transmit throughput
- >4000 frames/s
- Timestamp
- Hardware timestamping
- Termination
- Programmable 120 ohm
- Bit-rate range
- 5 kbps to 8 Mbps
- Isolation
- 2500 V
- TF card storage
- Up to 128 GB; FAT16 / FAT32 / exFAT

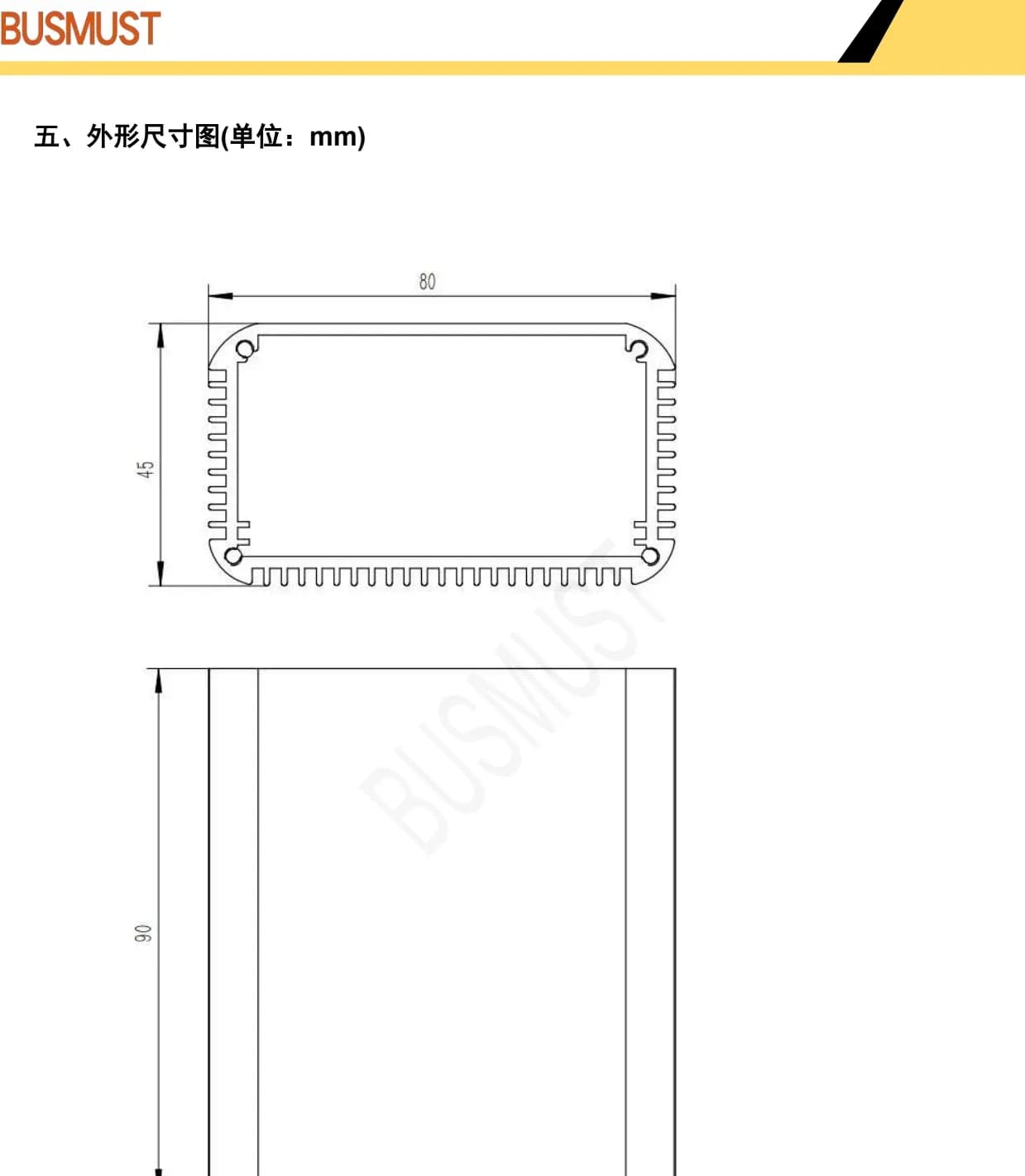

- Dimensions excluding terminals
- 80 x 45 x 93 mm
- Weight
- <200 g
- Standalone functions
- Logging / transmission / replay / routing
InventoryRFQ available
RFQ availableRequest a Quote
Unit pricing remains unpublished until commercial verification is complete.
