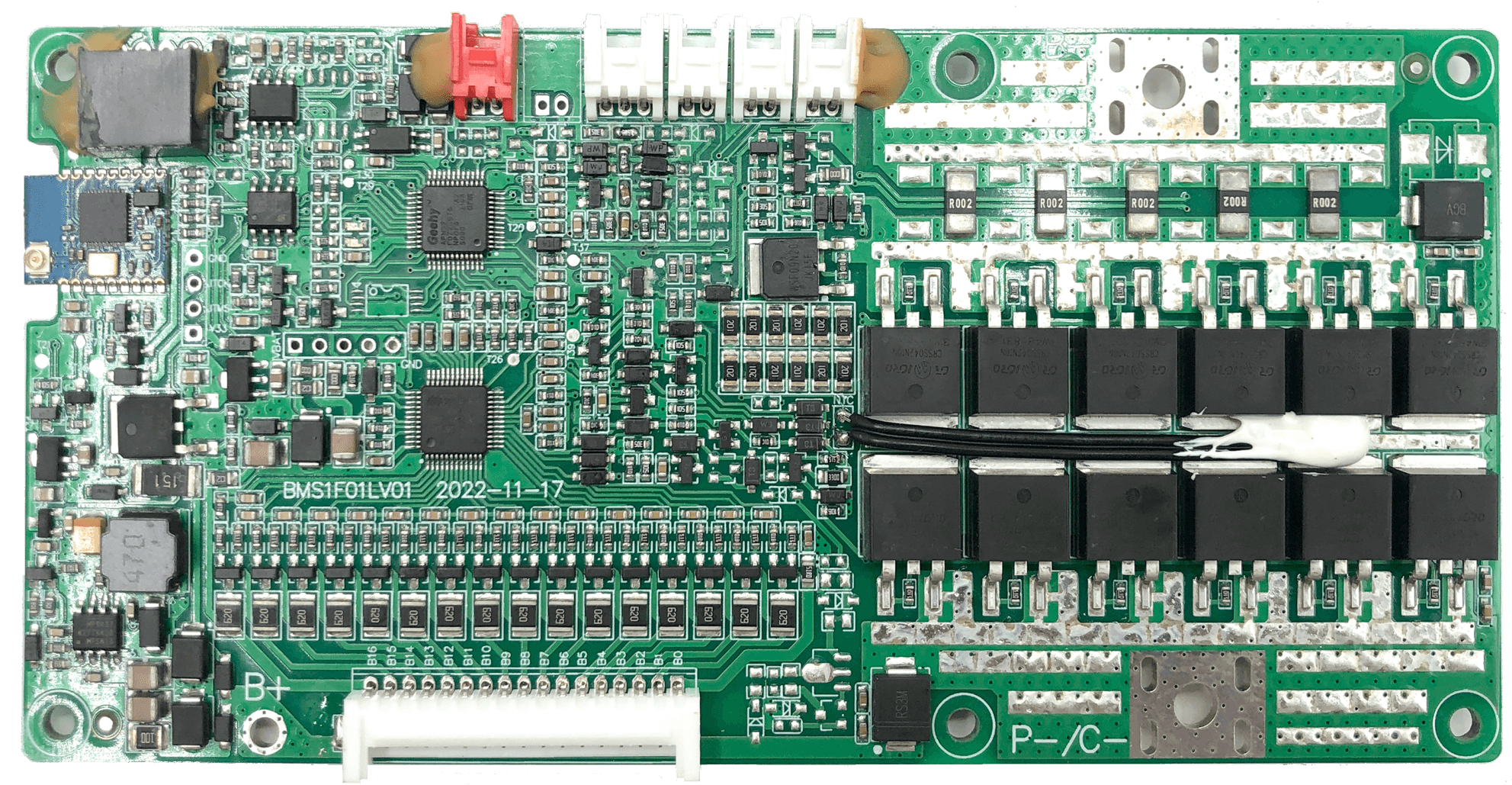

Battery Management SystemsExact model
BMS1F01L
BMS1F01L is listed in the Battery Management Systems range for robot integration and engineering evaluation. Key specifications: Cell count 6-16 series cells; Dimensions 156 x 75 x 18 mm. Confirm the final configuration, application fit, availability, and delivery terms through a quotation request.
Specifications
- Cell count
- 6-16 series cells
- Dimensions
- 156 x 75 x 18 mm
- Maximum working current
- 100, adjustable A
- Temperature detection channels
- 4
- Optional communications
- Isolated RS485 / CAN / Bluetooth
- Charge/discharge topology
- Common port
- Passive balancing current
- 50-100 mA
- Sleep current
- 50-100 uA
- Weak-current switch
- Supported
- Chemistry configurations
- Ternary lithium / lithium iron phosphate / sodium battery
InventoryRFQ available
RFQ availableRequest a Quote
Unit pricing remains unpublished until commercial verification is complete.
