Motor-Side EncodersExact model

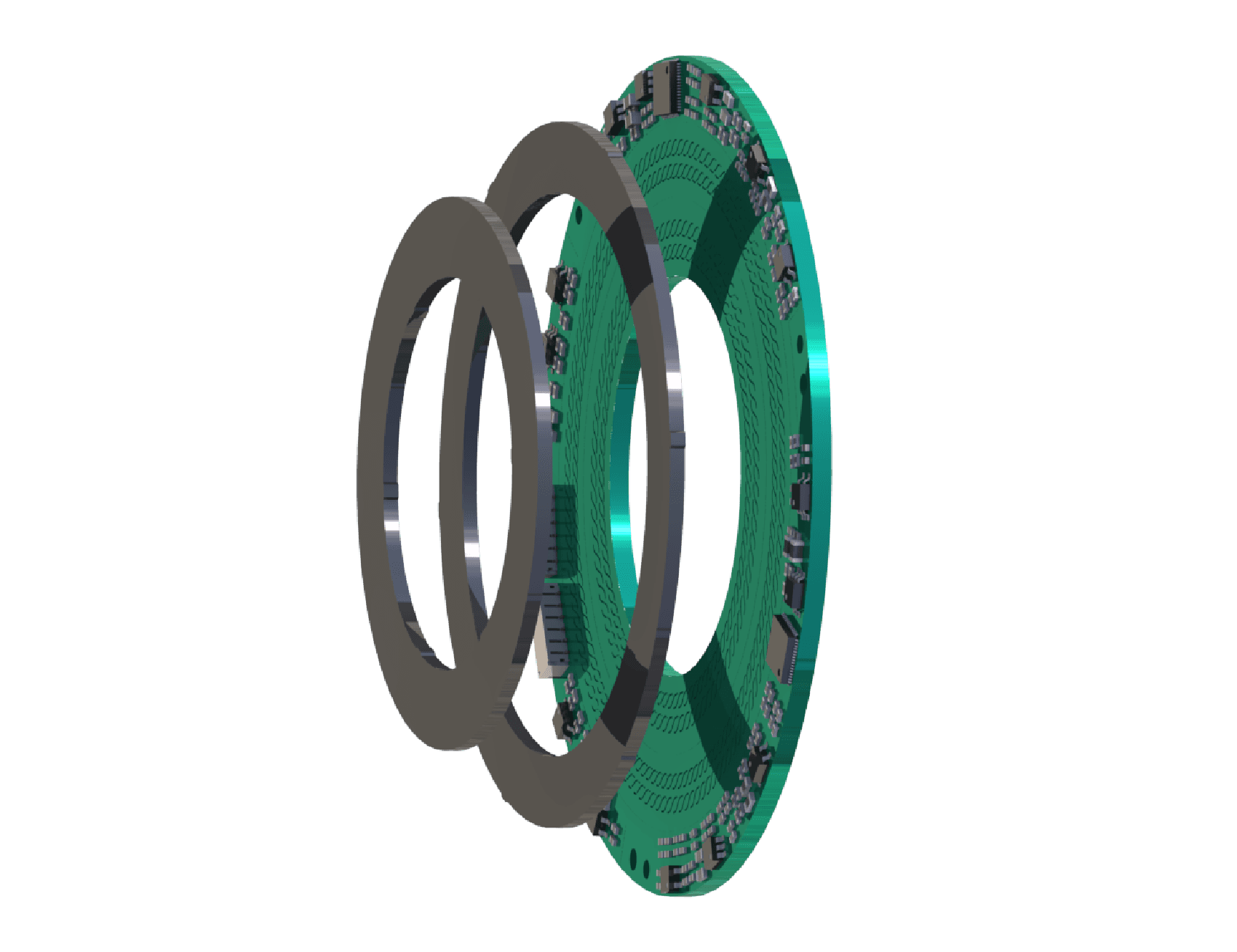

DIAP65
DIAP65 is listed in the Motor-Side Encoders range for robot integration and engineering evaluation. Key specifications: Series classification DIAP single-side dual-encoder series; Angular resolution 18-20 bit. Confirm the final configuration, application fit, availability, and delivery terms through a quotation request.
Specifications
- Series classification
- DIAP single-side dual-encoder series
- Angular resolution
- 18-20 bit
- Maximum static error
- +/-0.01 deg
- Repeatability error
- +/-2 LSB
- Maximum operating speed
- 6000 rpm
- Measurement range
- Single turn
- Mechanical envelope (outer diameter \ inner diameter \ thickness)
- 65 \ 30 \ 3.6 mm
- Allowed installation eccentricity
- +/-0.1 mm
- Stator-to-rotor installation gap
- 0.8 +/-0.2 mm
- Rotor inertia
- 0.88 / 2.06 kg*mm^2
- Approximate weight
- 20 g
- Supply voltage
- 5 V
- Current draw
- <80 mA
- Output protocols
- SSI / BiSS-C / RS-422 / RS-485
- Operating temperature
- -30 to +100 degC
- EMC standards
- IEC 61000-6-2 / IEC 61000-6-4
- Maximum ingress-protection rating
- IP40
InventoryRFQ available
RFQ availableRequest a Quote
Unit pricing remains unpublished until commercial verification is complete.
