Output-Side Absolute EncodersExact model

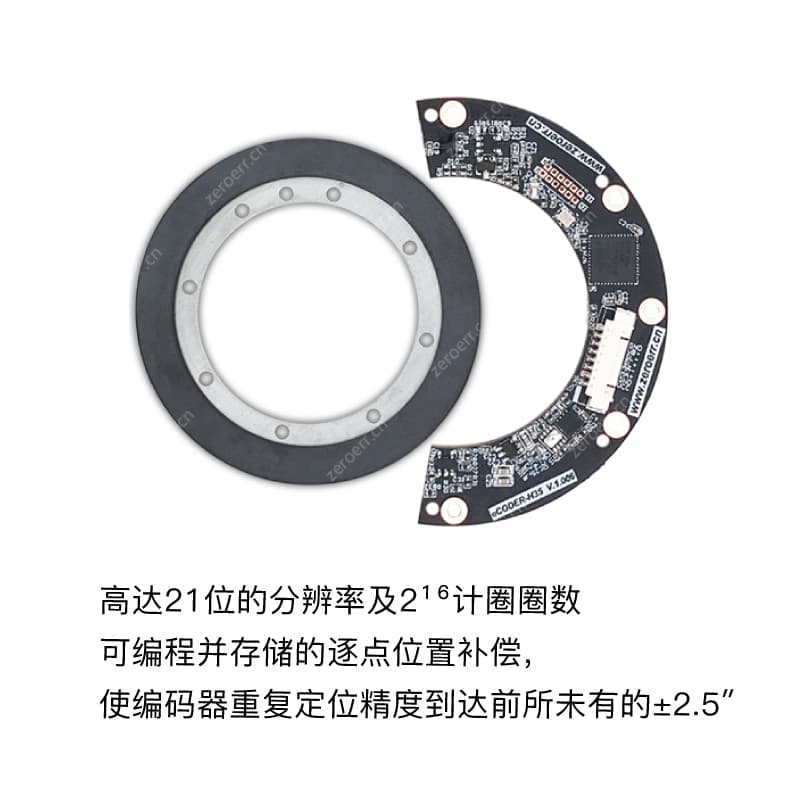

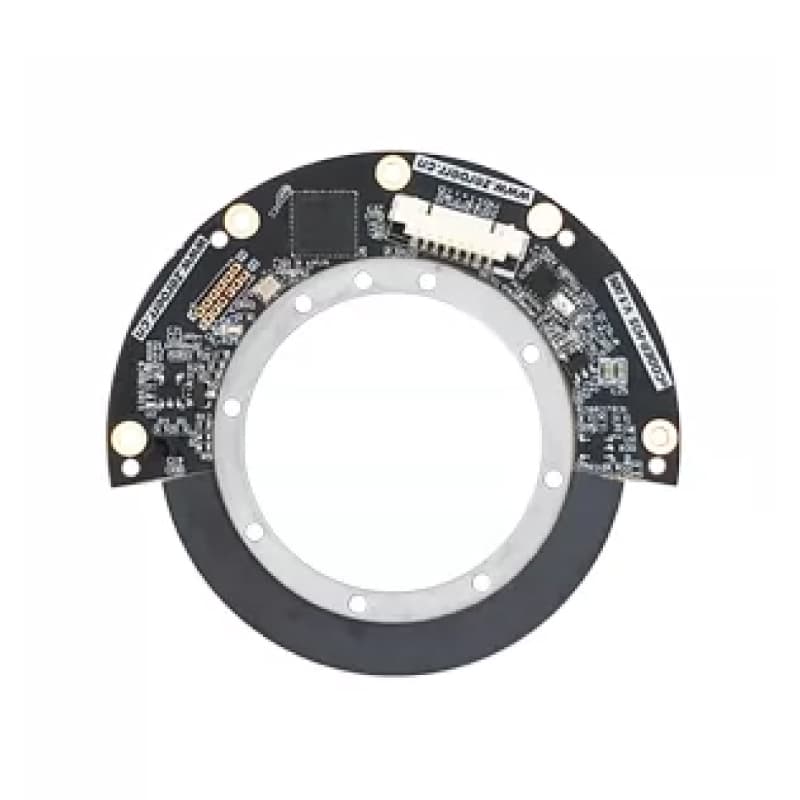

eCoder35H
eCoder35H is listed in the Output-Side Absolute Encoders range for robot integration and engineering evaluation. Key specifications: Product type Split absolute encoder; Installation type Split type. Confirm the final configuration, application fit, availability, and delivery terms through a quotation request.
Specifications
- Product type
- Split absolute encoder
- Installation type
- Split type
- Hollow bore diameter
- 35 mm
- Outer diameter
- 55 mm
- Thickness
- 8.6 mm
- Maximum resolution
- 21 bit
- Resolution options
- 17 / 18 / 19 / 20 / 21 bit
- Repeatability
- ±2.5 arcsec
- Maximum absolute error
- <0.02 deg
- Position update frequency
- >50 kHz
- Interface protocol
- RS485
- Interface design
- Fully differential
- Order configuration
- Single-turn or multi-turn, RS485, and supported resolution; confirm the complete order code during RFQ
InventoryRFQ available
RFQ availableRequest a Quote
Unit pricing remains unpublished until commercial verification is complete.
