Output-Side Absolute EncodersExact model
IAP40

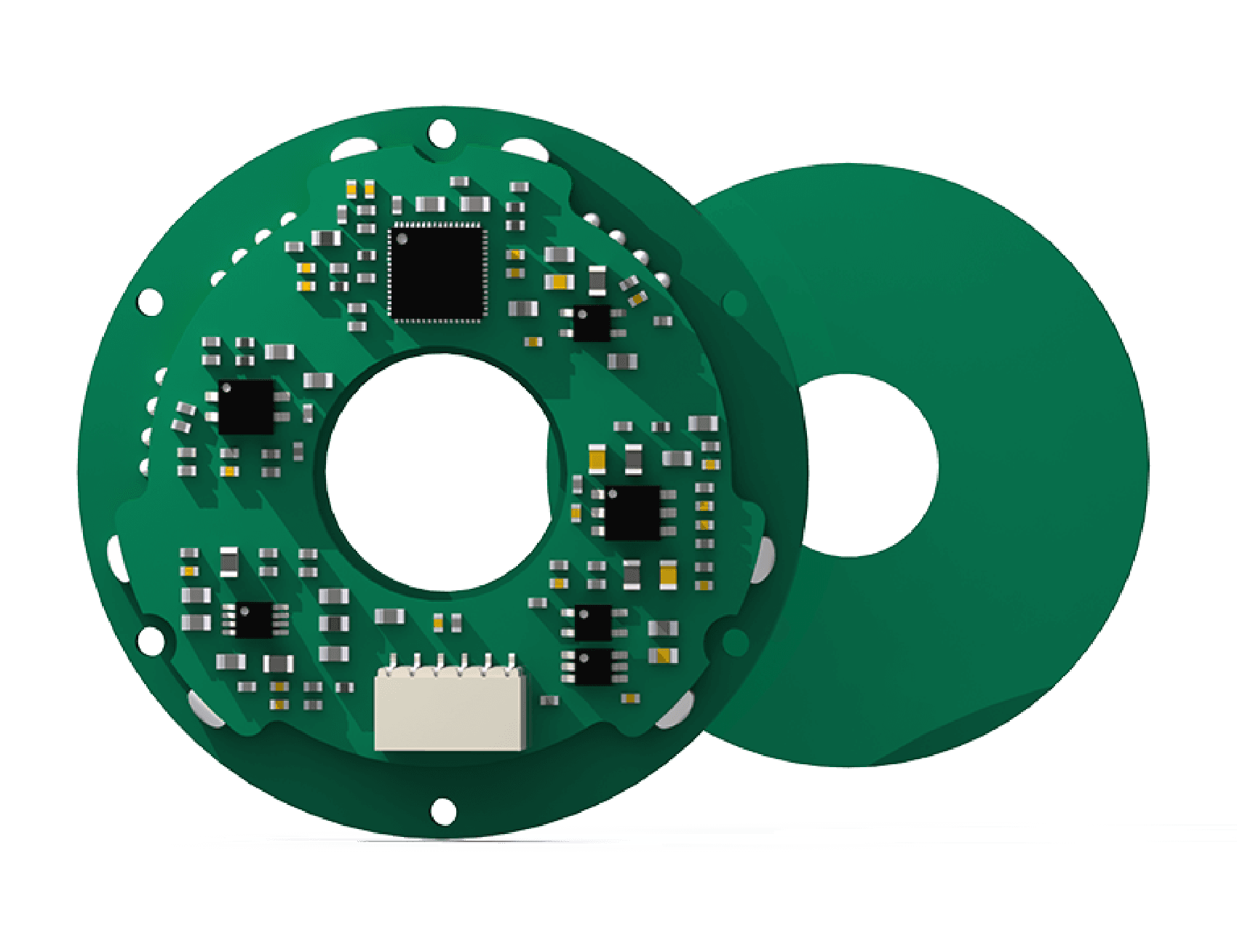

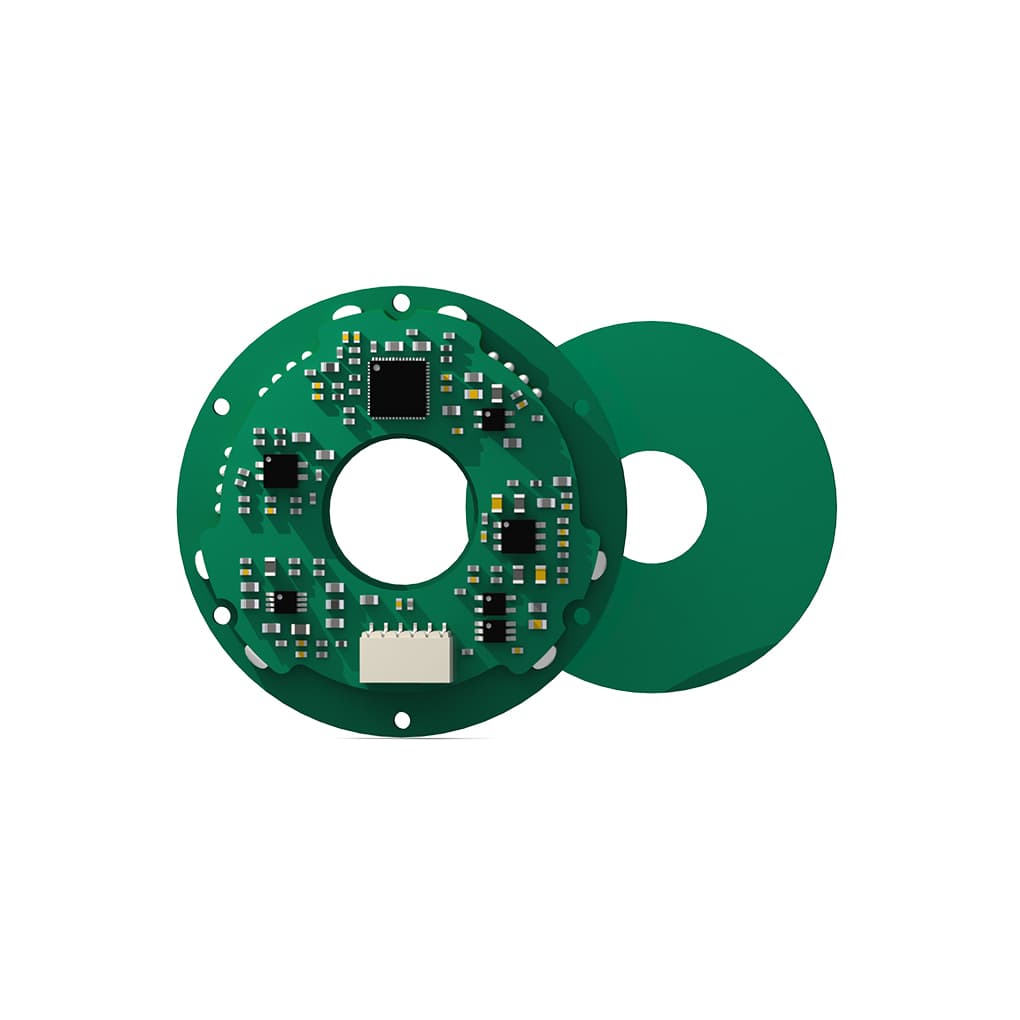

IAP40 is listed in the Output-Side Absolute Encoders range for robot integration and engineering evaluation. Key specifications: Product type Unpackaged inductive angle encoder; Angular resolution 17-18 bit. Confirm the final configuration, application fit, availability, and delivery terms through a quotation request.
Specifications
- Product type
- Unpackaged inductive angle encoder
- Angular resolution
- 17-18 bit
- Maximum static error
- +/-0.015 deg
- Repeatability error
- +/-2 LSB
- Maximum speed
- 6000 rpm
- Measurement range
- Single turn
- Outer diameter
- 40 mm
- Bore diameter
- 10 mm
- Thickness
- 7.8 mm
- Allowed eccentricity
- +/-0.1 mm
- Rotor-stator gap
- 0.6 +/- 0.1 mm
- Supply voltage
- 5-24 VDC
- Current consumption
- 120-130 mA
- Output options
- SSI / BiSS-C / RS-422 / RS-485 / differential ABZ
- Operating temperature
- -30 to +100 deg C
- Maximum listed ingress protection
- IP40
InventoryRFQ available
RFQ availableRequest a Quote
Unit pricing remains unpublished until commercial verification is complete.
