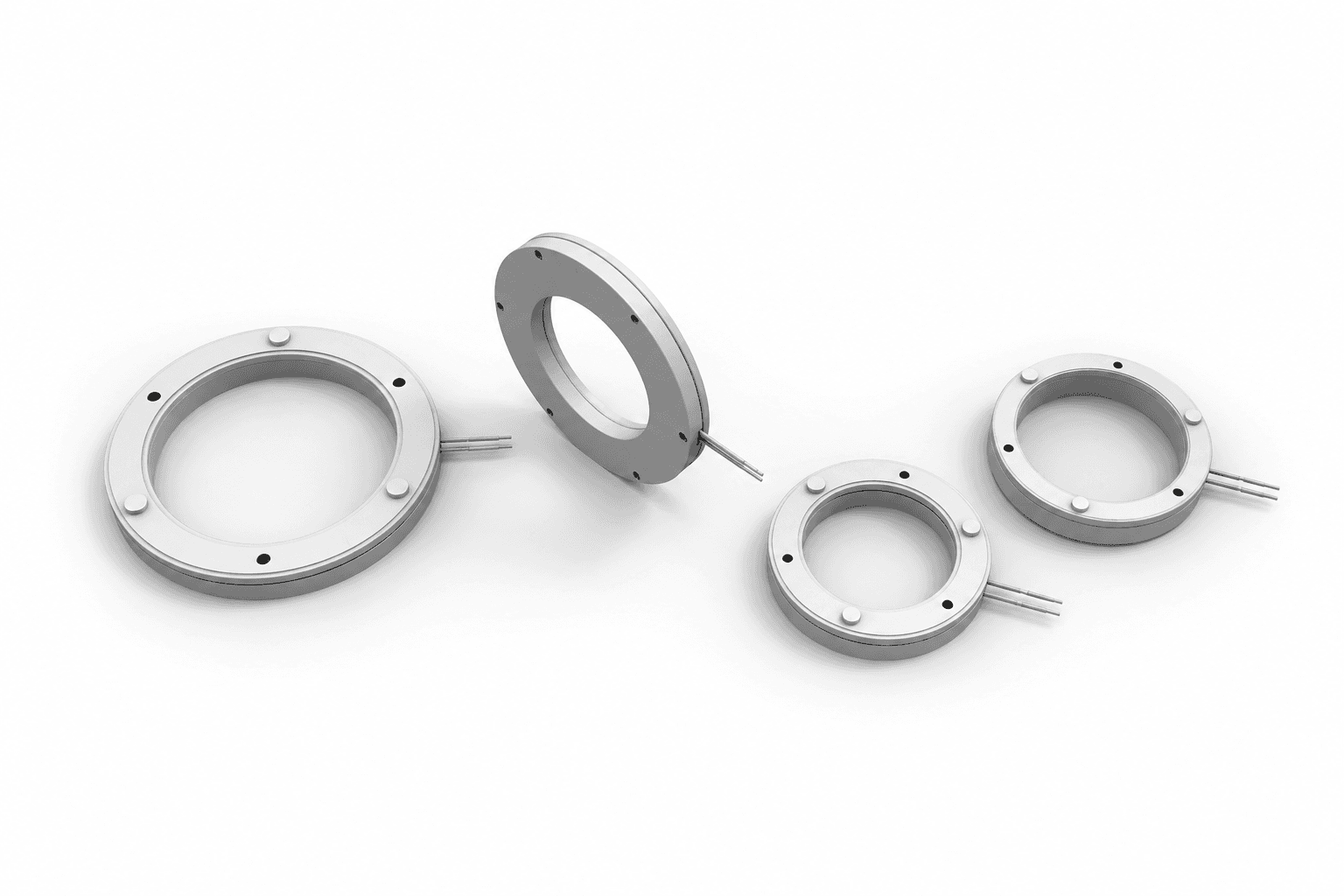

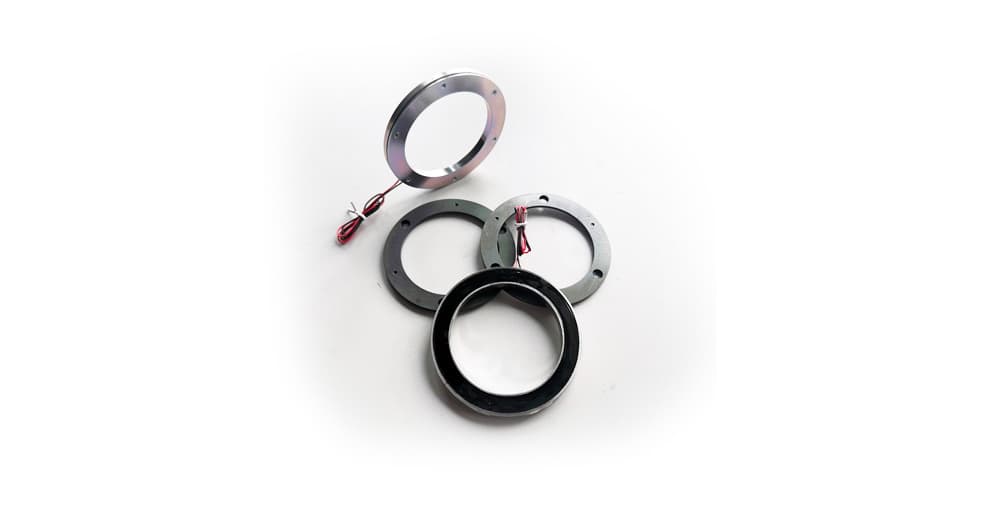

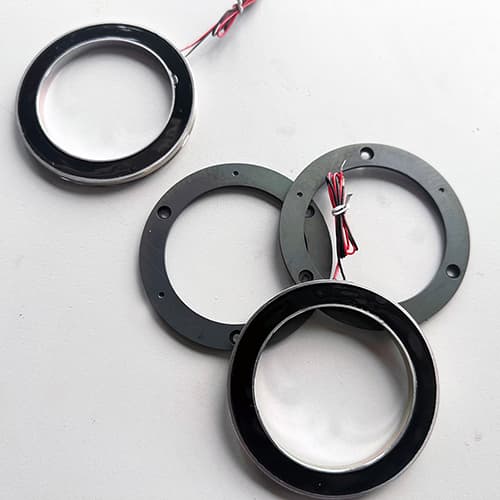

Joint Holding BrakesExact model
MK-K3-G01
MK-K3-G01 is listed in the Joint Holding Brakes range for robot integration and engineering evaluation. Key specifications: Product type Permanent-magnet power-off joint holding brake; Series MK-K3-G. Confirm the final configuration, application fit, availability, and delivery terms through a quotation request.
Specifications
- Product type
- Permanent-magnet power-off joint holding brake
- Series
- MK-K3-G
- Static holding torque
- 0.15 N.m
- Coil voltage at 20 C
- 24 VDC
- Coil power at 20 C
- 2.3 W
- Maximum speed
- 15000 rpm
- Brake-time
- 50; unit and test condition require confirmation
- Release-time
- 30; unit and test condition require confirmation
- Single work
- 15 J
- Total work
- 4.5 kJ
- Mass
- 0.04 kg
- Radial dimensions
- A 40 / B 34 / C 22 / C1 22 / D 40 / E 32 mm
- Axial dimensions
- G 2.1 / H 4.3 / J 4 / P 1.5 / L 1.5 / I 4 / K 8 / N 5.7 mm
- Working air gap alpha
- 0.12-0.2 mm
- Thread M
- M2
