Frameless BLDC/PMSM MotorsExact model

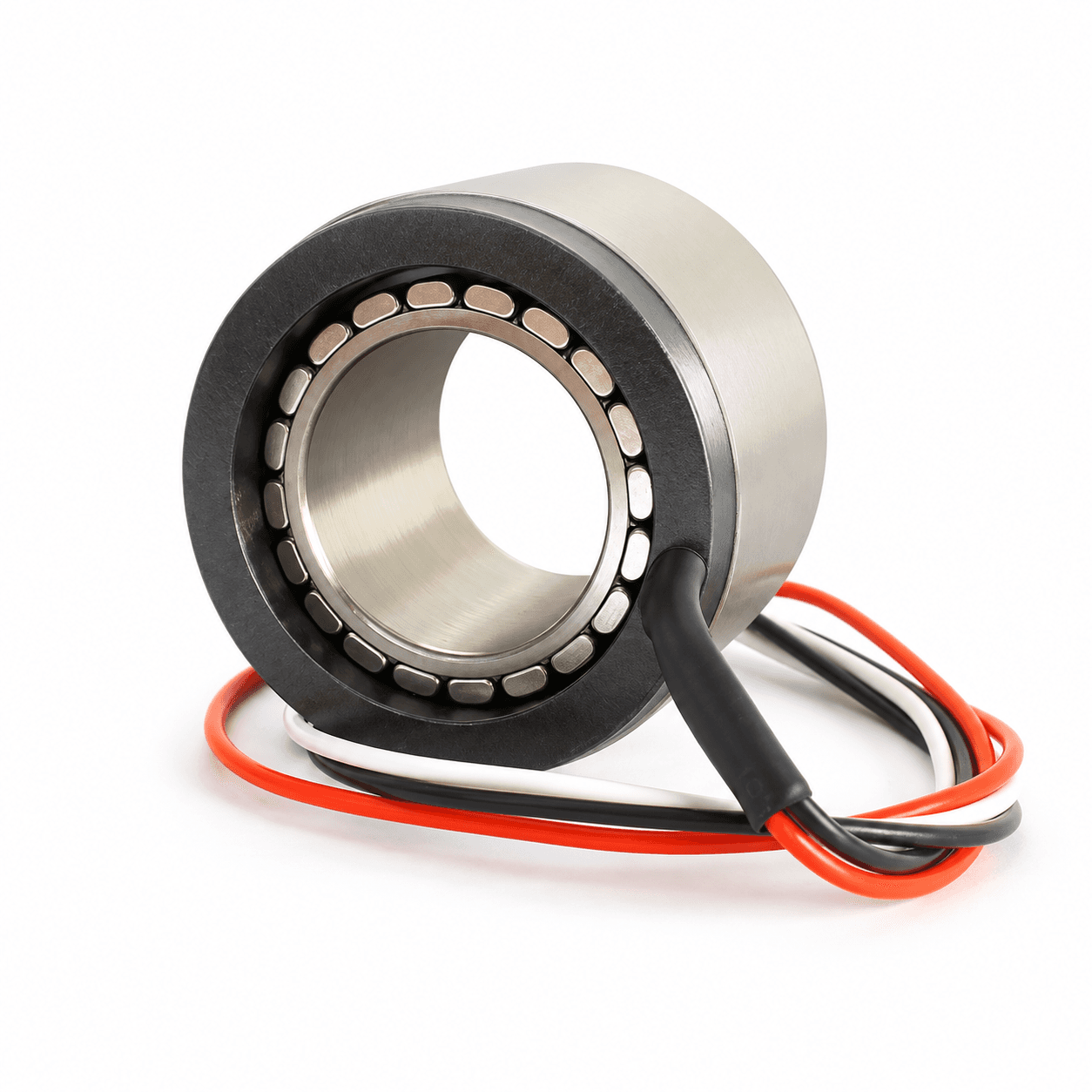

U5037
U5037 is listed in the Frameless BLDC/PMSM Motors range for robot integration and engineering evaluation. Key specifications: Outside diameter 50 mm; Inside diameter 30 mm. Confirm the final configuration, application fit, availability, and delivery terms through a quotation request.
Specifications
- Outside diameter
- 50 mm
- Inside diameter
- 30 mm
- Overall height (L3)
- 37.9 mm
- Voltage
- 48 VDC
- Rated output power
- 220 W
- Rated torque
- 0.7 N.m
- Maximum torque
- 2.1 N.m
- Rated current
- 5.8 A
- Maximum current
- 17.5 A
- Rated speed
- 3000 rpm
- No-load speed
- 4500 rpm
- Torque constant
- 0.12 N.m/A
- Rotor inertia
- 0.163 kg.cm2
- Back EMF constant
- 9 V/Krpm
- Line resistance at 20 C
- 0.56 ohm
- Line inductance
- 0.42 mH
- Pole pairs (2P)
- 10
