Frameless BLDC/PMSM MotorsExact model

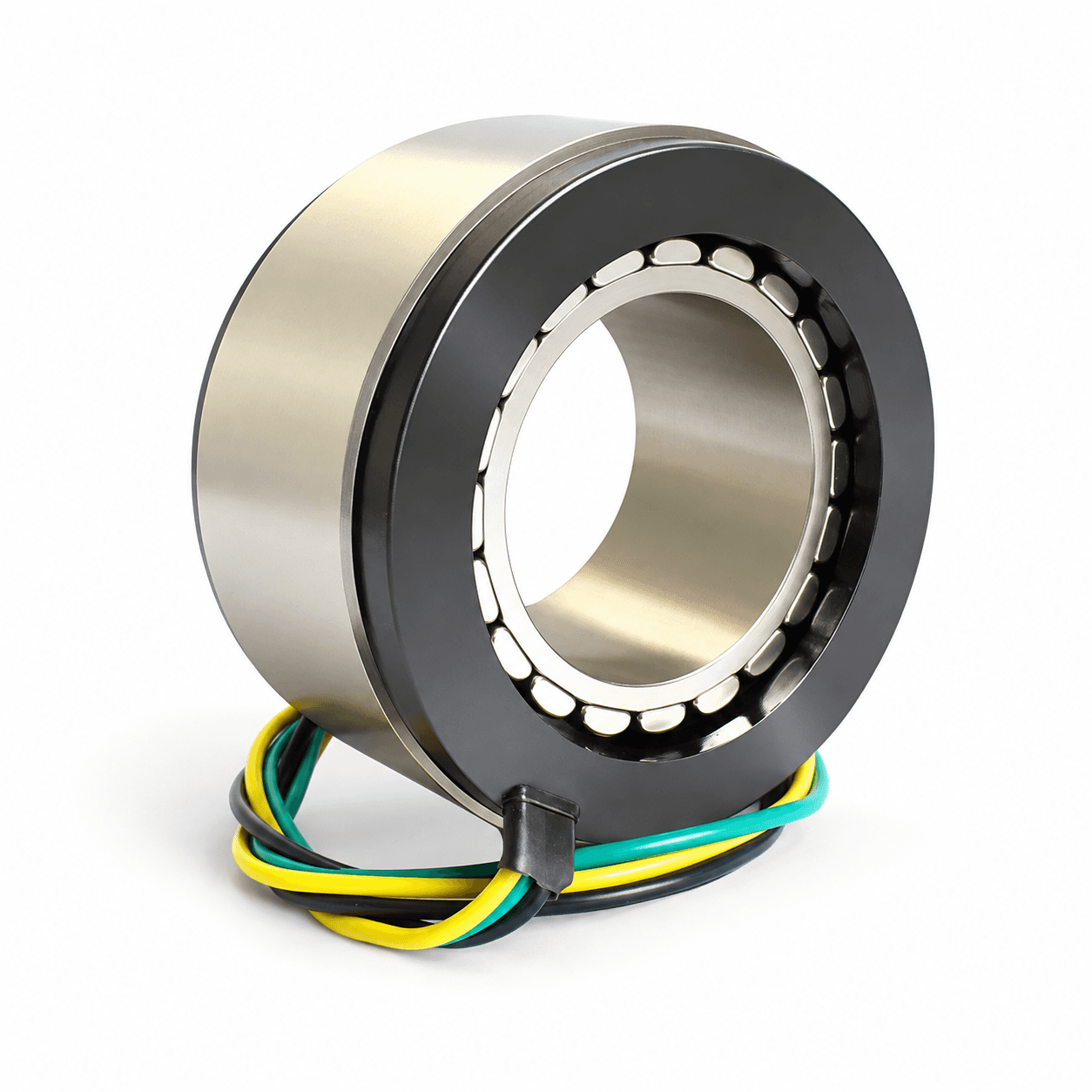

U6836
U6836 is listed in the Frameless BLDC/PMSM Motors range for robot integration and engineering evaluation. Key specifications: Outside diameter 68 mm; Inside diameter 40 mm. Confirm the final configuration, application fit, availability, and delivery terms through a quotation request.
Specifications
- Outside diameter
- 68 mm
- Inside diameter
- 40 mm
- Overall height (L3)
- 36.6 mm
- Voltage
- 48 VDC
- Rated output power
- 487 W
- Rated torque
- 1.55 N.m
- Maximum torque
- 4.65 N.m
- Rated current
- 12 A
- Maximum current
- 36 A
- Rated speed
- 3000 rpm
- No-load speed
- 4500 rpm
- Torque constant
- 0.129 N.m/A
- Rotor inertia
- 0.68 kg.cm2
- Back EMF constant
- 7.7 V/Krpm
- Line resistance at 20 C
- 0.14 ohm
- Line inductance
- 0.17 mH
- Pole pairs (2P)
- 10
InventoryRFQ available
RFQ availableRequest a Quote
Unit pricing remains unpublished until commercial verification is complete.
