Frameless BLDC/PMSM MotorsExact model

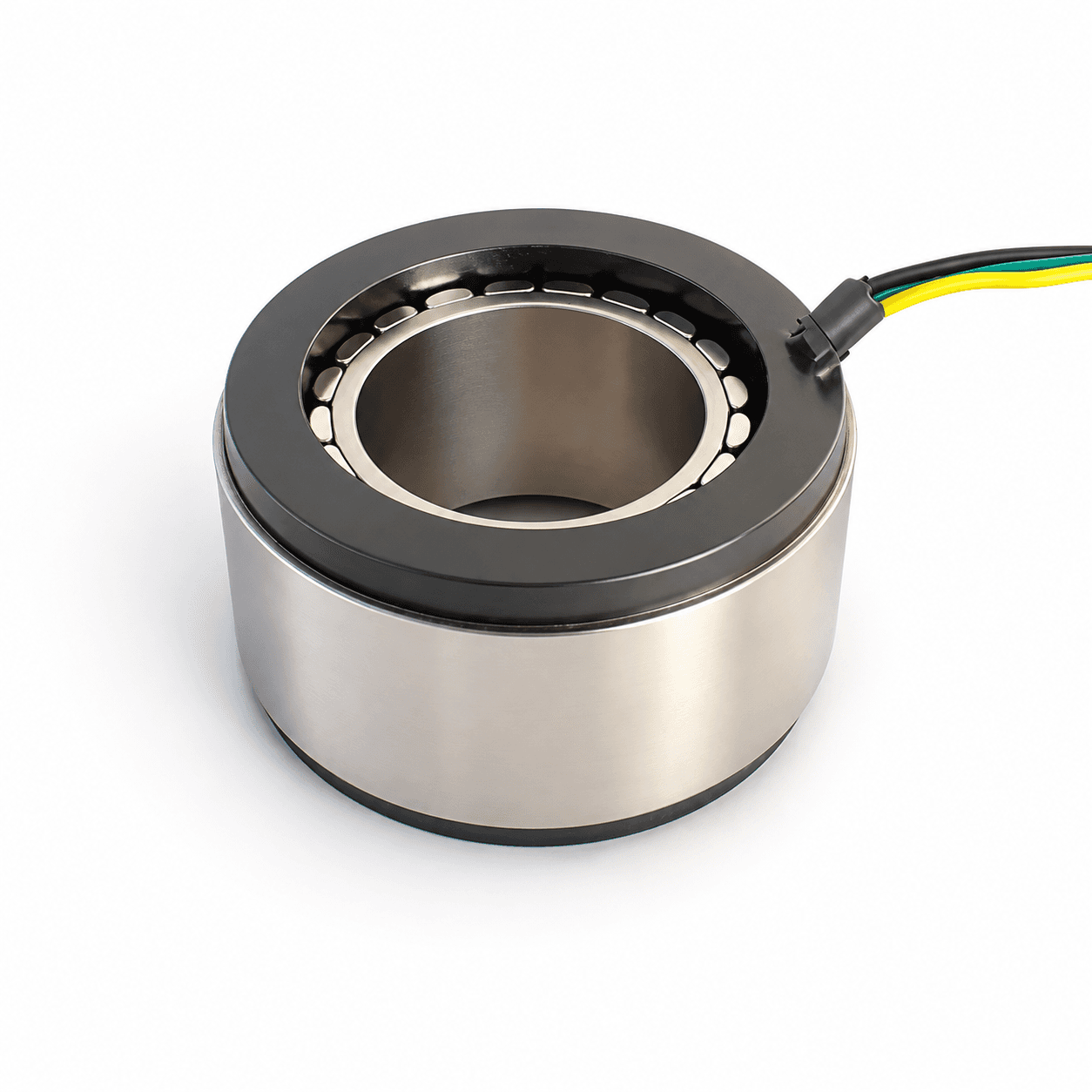

U7636
U7636 is listed in the Frameless BLDC/PMSM Motors range for robot integration and engineering evaluation. Key specifications: Outside diameter 76 mm; Inside diameter 45 mm. Confirm the final configuration, application fit, availability, and delivery terms through a quotation request.
Specifications
- Outside diameter
- 76 mm
- Inside diameter
- 45 mm
- Overall height (L3)
- 36.7 mm
- Voltage
- 48 VDC
- Rated output power
- 660 W
- Rated torque
- 2.1 N.m
- Maximum torque
- 6.3 N.m
- Rated current
- 16 A
- Maximum current
- 48 A
- Rated speed
- 3000 rpm
- No-load speed
- 4500 rpm
- Torque constant
- 0.115 N.m/A
- Rotor inertia
- 1.037 kg.cm2
- Back EMF constant
- 8.1 V/Krpm
- Line resistance at 20 C
- 0.11 ohm
- Line inductance
- 0.15 mH
- Pole pairs (2P)
- 10
InventoryRFQ available
RFQ availableRequest a Quote
Unit pricing remains unpublished until commercial verification is complete.
