Frameless BLDC/PMSM MotorsExact model

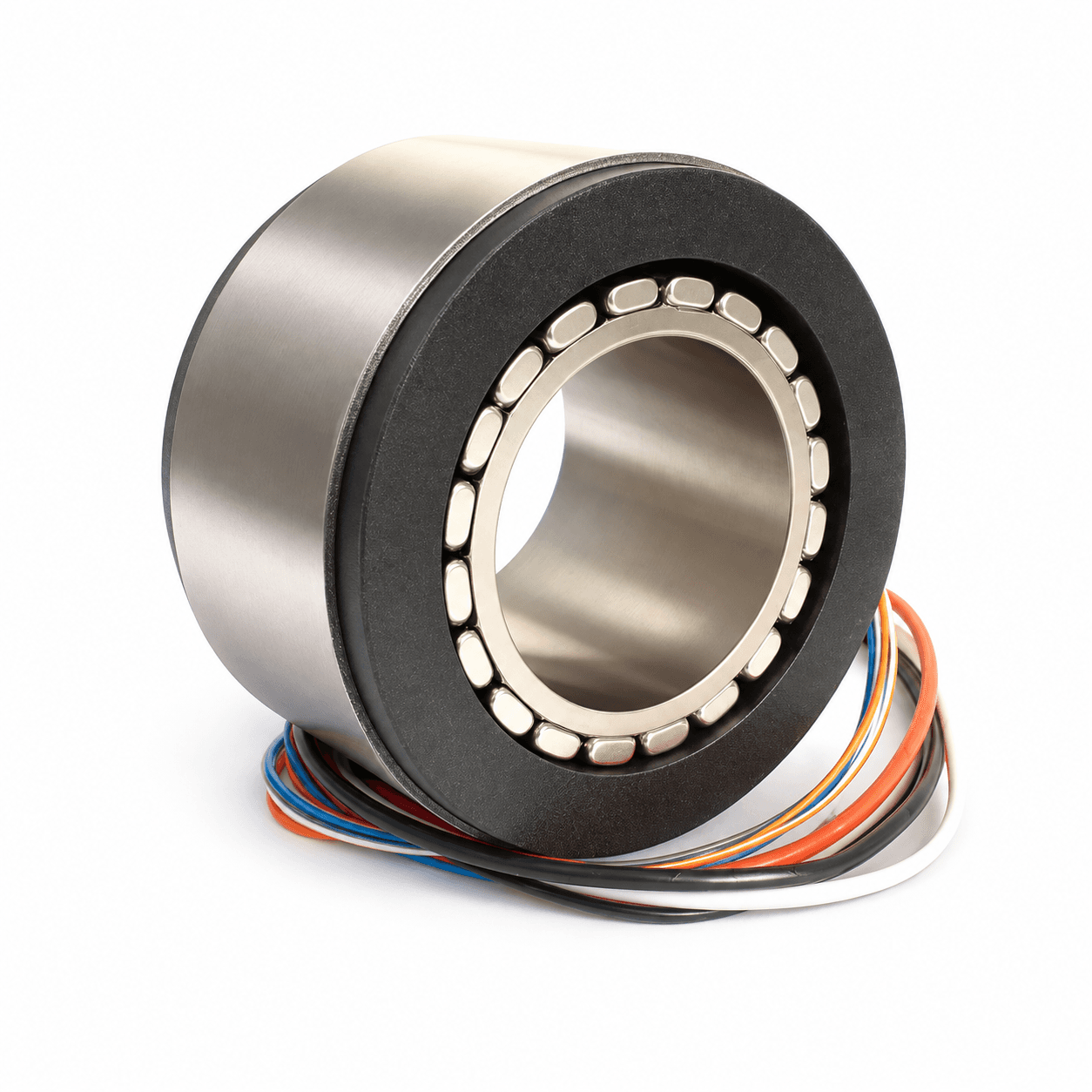

U8537
U8537 is listed in the Frameless BLDC/PMSM Motors range for robot integration and engineering evaluation. Key specifications: Outside diameter 85 mm; Inside diameter 52 mm. Confirm the final configuration, application fit, availability, and delivery terms through a quotation request.
Specifications
- Outside diameter
- 85 mm
- Inside diameter
- 52 mm
- Overall height (L3)
- 37.7 mm
- Voltage
- 48 VDC
- Rated output power
- 848 W
- Rated torque
- 2.7 N.m
- Maximum torque
- 8.1 N.m
- Rated current
- 23.5 A
- Maximum current
- 40.5 A
- Rated speed
- 3000 rpm
- No-load speed
- 4500 rpm
- Torque constant
- 0.115 N.m/A
- Rotor inertia
- 1.581 kg.cm2
- Back EMF constant
- 8.2 Vrms/Krpm
- Line resistance at 20 C
- 0.065 ohm
- Line inductance
- 0.077 mH
- Pole pairs (2P)
- 11
InventoryRFQ available
RFQ availableRequest a Quote
Unit pricing remains unpublished until commercial verification is complete.
