Frameless BLDC/PMSM MotorsExact model

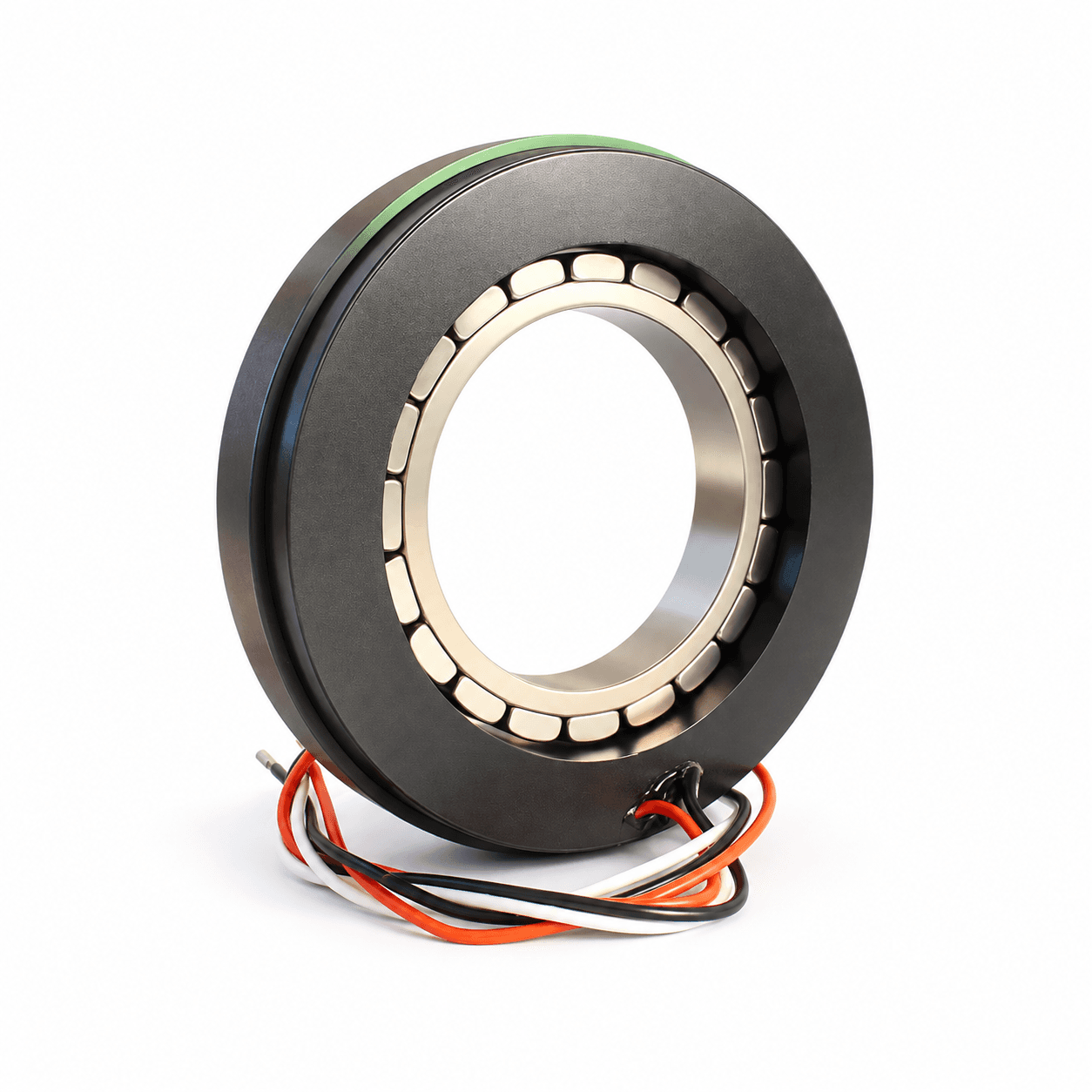

U9419
U9419 is listed in the Frameless BLDC/PMSM Motors range for robot integration and engineering evaluation. Key specifications: Outside diameter 94 mm; Inside diameter 57 mm. Confirm the final configuration, application fit, availability, and delivery terms through a quotation request.
Specifications
- Outside diameter
- 94 mm
- Inside diameter
- 57 mm
- Overall height (L3)
- 19.9 mm
- Voltage
- 48 VDC
- Rated output power
- 502.6 W
- Rated torque
- 1.6 N.m
- Maximum torque
- 4.8 N.m
- Rated current
- 12.5 Arms
- Maximum current
- 37.5 Arms
- Rated speed
- 3000 rpm
- No-load speed
- 4500 rpm
- Torque constant
- 0.128 N.m/A
- Rotor inertia
- 0.71 kg.cm2
- Back EMF constant
- 8.1 V/Krpm
- Line resistance at 20 C
- 0.15 ohm
- Line inductance
- 0.26 mH
- Pole pairs (2P)
- 11
InventoryRFQ available
RFQ availableRequest a Quote
Unit pricing remains unpublished until commercial verification is complete.
