Power & Signal ConnectorsExact model

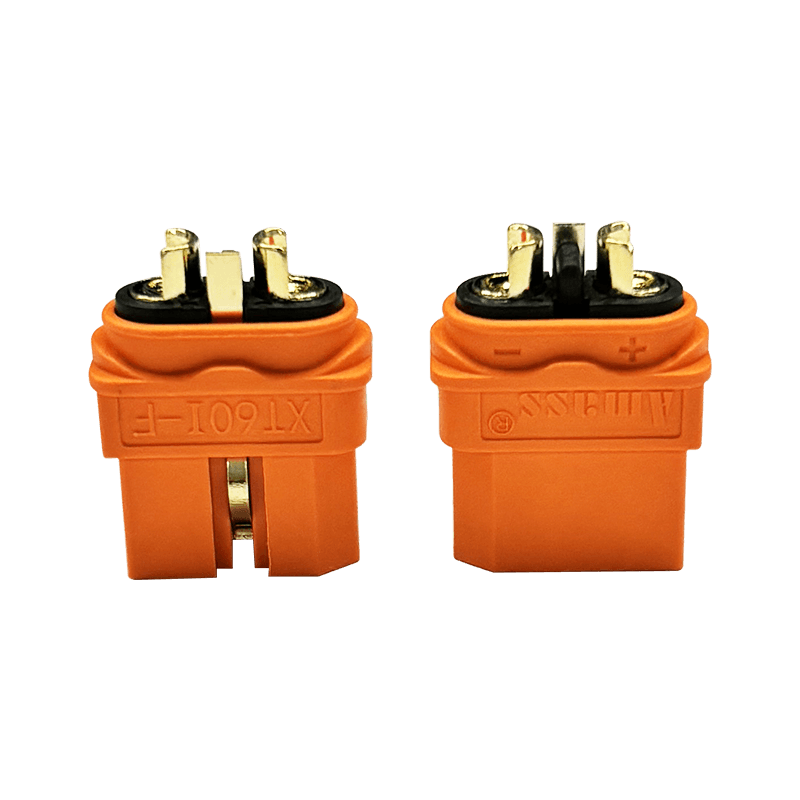

XT60I-F(Z)
XT60I-F(Z) is listed in the Power & Signal Connectors range for robot integration and engineering evaluation. Key specifications: Power and signal contact configuration XT60 (2+1) classification; Termination style Blocked-hole overmolded wire female. Confirm the final configuration, application fit, availability, and delivery terms through a quotation request.
Specifications
- Power and signal contact configuration
- XT60 (2+1) classification
- Termination style
- Blocked-hole overmolded wire female
- Withstand voltage
- 600 VDC
- Rated power-contact current
- 35 A
- Wire gauge
- 12 AWG
- Operating temperature
- -20 to +120 deg C
- Salt-spray duration
- 48 h
- Insulation resistance
- >=2000 MOhm
- Materials
- PA / gold-plated brass
- Mating life
- 100 cycles
- Ingress protection
- IP40
- Flammability
- UL94 V-0
InventoryRFQ available
RFQ availableRequest a Quote
Unit pricing remains unpublished until commercial verification is complete.
