Power & Signal ConnectorsExact model

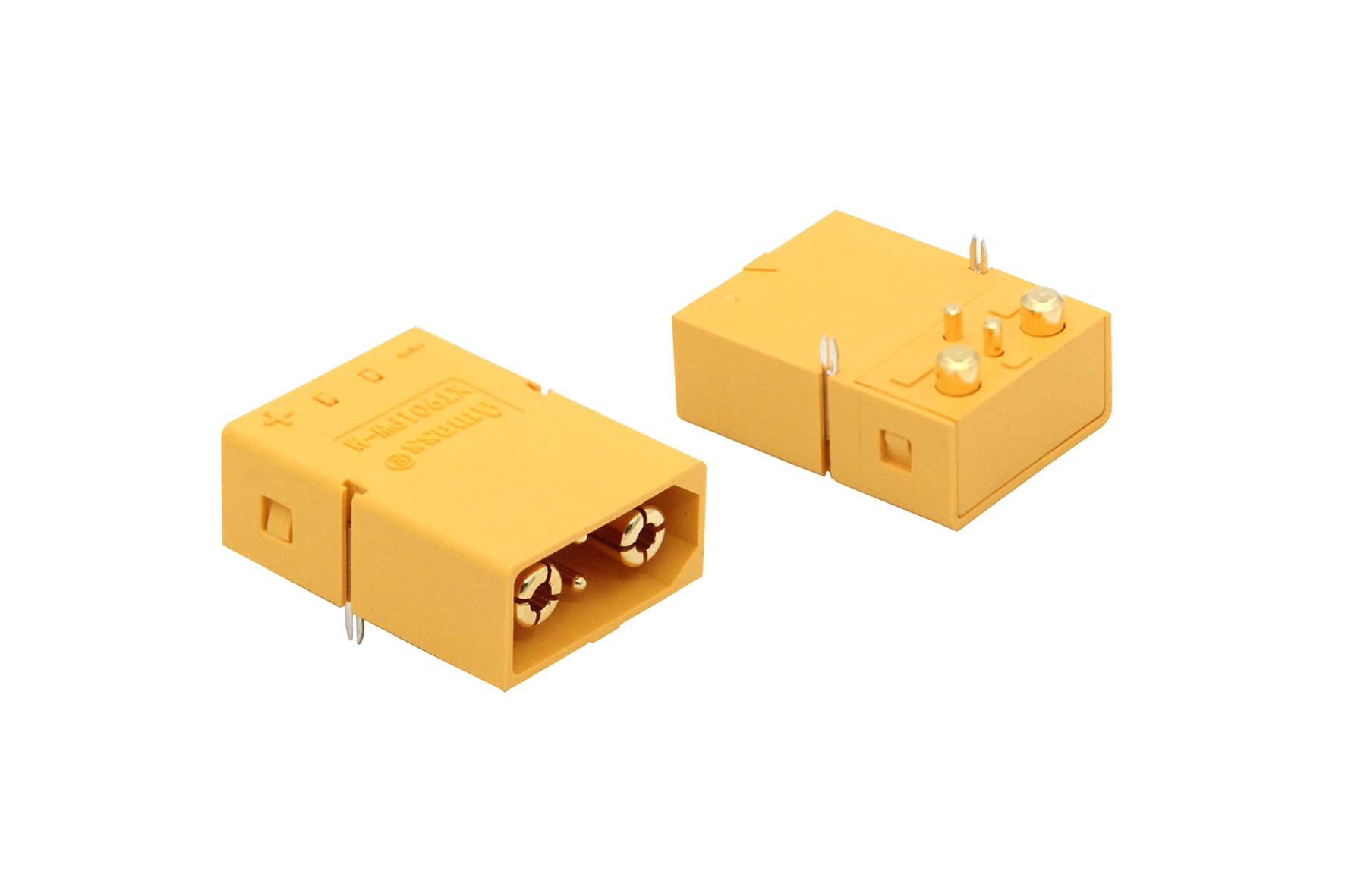

XT90(2+2)PW-M
XT90(2+2)PW-M is listed in the Power & Signal Connectors range for robot integration and engineering evaluation. Key specifications: Power and signal contact configuration 2 power + 2 signal; Termination style Horizontal PCB male. Confirm the final configuration, application fit, availability, and delivery terms through a quotation request.
Specifications
- Power and signal contact configuration
- 2 power + 2 signal
- Termination style
- Horizontal PCB male
- Withstand voltage
- 600 VDC
- Rated power-contact current
- 45 A
- Rated signal-contact current
- 1 A
- Operating temperature
- -20 to +120 deg C
- Salt-spray duration
- 48 h
- Insulation resistance
- >=2000 MOhm
- Materials
- PA / gold-plated brass
- Mating life
- 100 cycles
- Ingress protection
- IP40
- Flammability
- UL94 V-0
